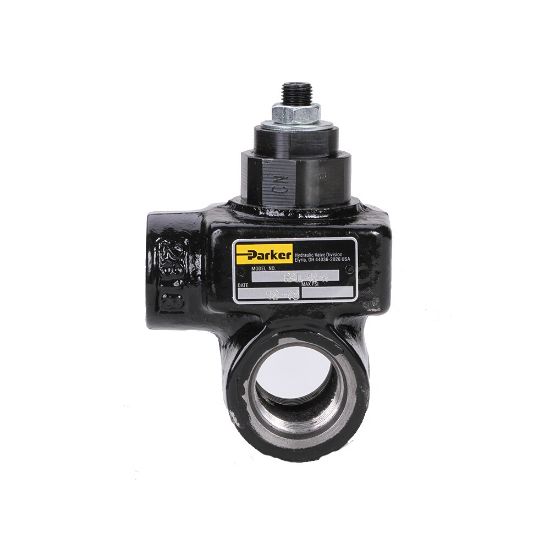

RPJL-50-A - In-Line Mounted Pilot Operated Relief Valve - RPJL Series

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU RPJL-50-A

$529.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	1/2" NPT
Connection Size	1/2"	Product Style	In-Line Pilot Mounted Operated Relief Valve
Minimum Operating Temperature	-40 °F	Adjustment Mechanism	Adjustable
Pressure Control Range	Adjustable	Mounting Type	In-Line
Maximum Operating Pressure	2000 psi	Actuation Type	Adjustable
Weight	3 lb	Body Material	High Strength Cast Iron
Connection Type	NPT	Seal Material	Nitrile
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	25 Gal/min
Maximum Operating Temperature	+200 °F	For Fluid Type	Hydraulic Oil
