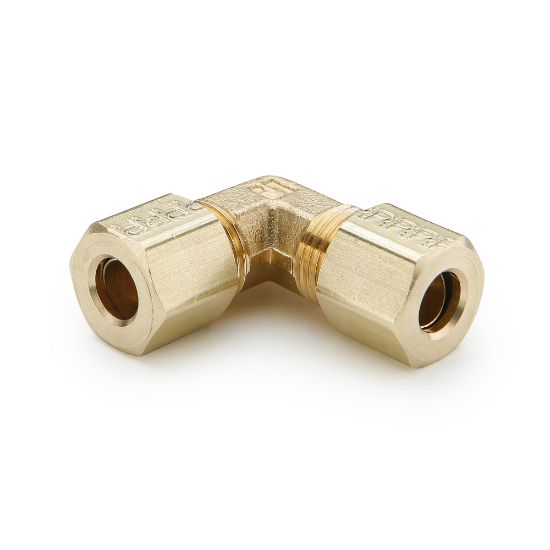

165C-12 - Inch Brass Compression Fittings

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	3 in stock

SKU 165C-12

$98.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Connection 2 Size	3/4"	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Size	3/4"
Connection 1 Type	Compression	Connection 2 Type	Compression
Tube Material	Copper, Aluminum, Thermoplastic	Media	Water, air, inert and non-combustible gasses
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-54 °C
Sleeve Material	Brass, Acetal	Nut Material	Brass
Maximum Operating Pressure	550 psi	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Dimensional Weight	0.5519 lb	Quantity per Box	na
Specifications Met	na	Division	Fluid System Connectors Division
Body Material	Brass	Weight	na
