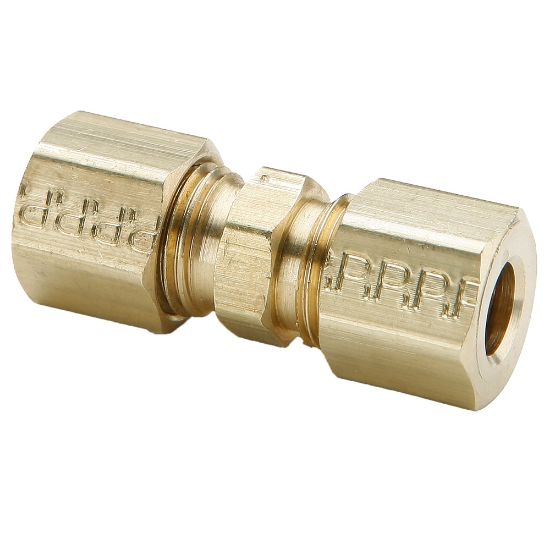

62C-10 - Inch Brass Compression Fittings

Name: 62C-10 - Inch Brass Compression Fittings
SKU: 62C-10
Price: 24.10 USD
Availability: InStock

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:

8 in stock

Olivette, MO	6
Decatur, IL	2

Partner Available:

71 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 62C-10

$24.10/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	5/8"
Configuration	Tube to Tube	Body Material	Brass, Forged
Connection 1 Size	5/8"	Connection 1 Type	Compression
Connection 2 Type	Compression	Shape	Union
Division	Fluid System Connectors Division	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Media	Water, air, inert and non-combustible gasses	Maximum Operating Pressure	650 psi
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Body Material	Brass	Specifications Met	na
Quantity per Box	na	Weight	na
Tube Material	Copper, Aluminum, Thermoplastic	Dimensional Weight	0.2759 lb
Nut Material	Brass	Sleeve Material	Brass, Acetal
