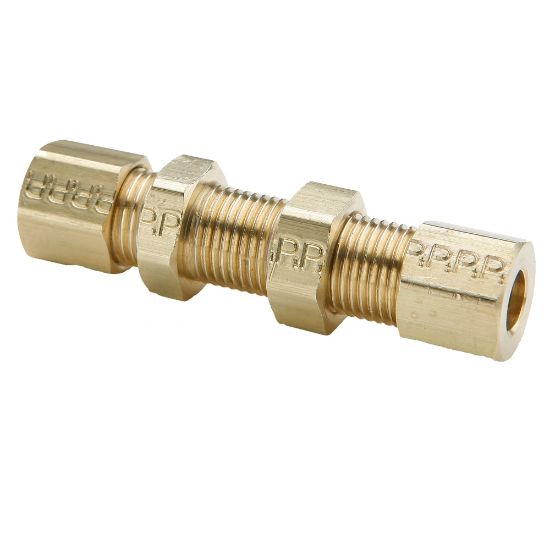

62CBH-4 - Inch Brass Compression Fittings

Name: 62CBH-4 - Inch Brass Compression Fittings
SKU: 62CBH-4
Price: 22.55 USD
Availability: InStock

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:

8 in stock

Kansas City, KS

Partner Available:

15 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 62CBH-4

$22.55/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 2 Type	Compression	Product Style	Bulkhead
Sleeve Material	Brass, Acetal	Minimum Operating Temperature	-54 °C
Specifications Met	SAE J-512	Quantity per Box	na
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Maximum Operating Pressure	300 psi
Weight	na	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Tube Material	Copper, Aluminum, Thermoplastic
Media	Water, air, inert and non-combustible gasses
