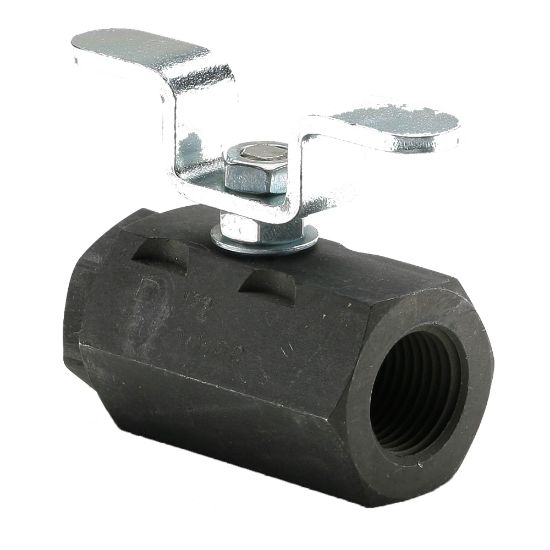

V500CS-8-04 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	Backordered

SKU V500CS-8-04

Products specifications

Attribute name	Attribute value
UOM	EA	Locking Mechanism	Non-Locking
Handle	Steel Tee	Maximum Working Pressure (psi)	2000
Connection 1 Thread Style	Female Pipe	Connection 1 Thread Size (inch)	1/2
Connection 2 Thread Style	Female Pipe	Connection 2 Thread Size (inch)	1/2
Shape	In Line	Style	Female Pipe Ends
Actuation Type	Manual	Configuration	In-Line
Orifice Size	n/a	Specifications Met	n/a
Ball Material	Steel	Mounting Type	Panel
Operation Type	n/a	Handle Type	Tee
Shape	in-line	Body Material	Carbon Steel
Maximum Operating Pressure	138	Seal Material	PTFE
Maximum Operating Temperature	425	Seat Material	PTFE
Maximum Flow Rate	n/a	Connection Type	NPT, Straight Thread, SAE J1926-1
Division	Fluid System Connectors Division	Minimum Operating Temperature	-20
Connection Size	1/2	Product Type	Ball Valve
Function	Ball Valve
