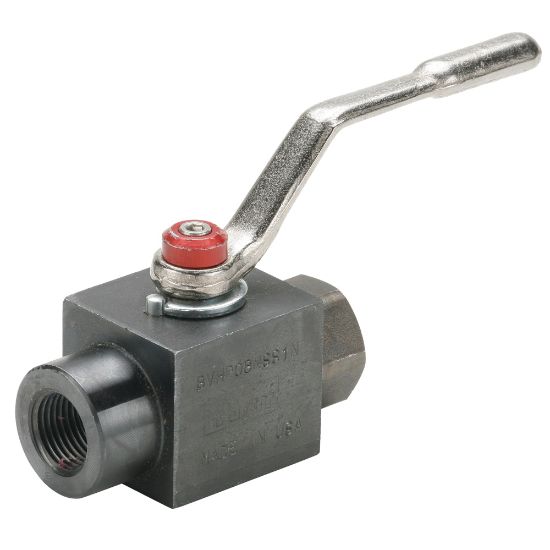

V500HP-16 - Industrial Ball Valves - Carbon Steel

Name: V500HP-16 - Industrial Ball Valves - Carbon Steel
SKU: V500HP-16
Price: 242.14 USD
Availability: InStock

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:

3 in stock

Kansas City, KS

Partner Available:

37 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V500HP-16

$242.14/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	6000
Connection 2 Thread Style	Female Pipe	Handle	Steel Lever
Style	Female Pipe Ends	Shape	In Line
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection 2 Thread Size (inch)	1	Connection 1 Thread Size (inch)	1
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread, SAE J1926-1
Maximum Flow Rate	n/a	Seat Material	Delrin Molybdenum Disulphide
Maximum Operating Temperature	210	Operation Type	n/a
Product Type	Ball Valve	Connection Size	1
Function	Ball Valve	Seal Material	PTFE
Ball Material	Steel	Specifications Met	n/a
Mounting Type	Panel	Minimum Operating Temperature	-10
Handle Type	Lever	Maximum Operating Pressure	413
Body Material	Carbon Steel	Shape	in-line
Orifice Size	n/a	Configuration	In-Line
Actuation Type	Manual
