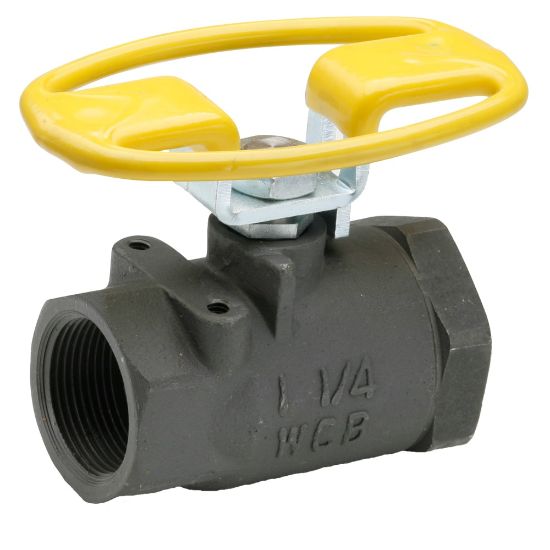

V502CS-24-21 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	Backordered

SKU V502CS-24-21

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	1500
Locking Mechanism	Non-Locking	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Connection 1 Thread Size (inch)	1 1/2	Connection 2 Thread Size (inch)	1 1/2
Handle	Steel Oval	Shape	Panel mount
Function	Ball Valve	Product Type	Ball Valve
Seal Material	PTFE	Connection Size	1 1/2
Ball Material	Steel	Specifications Met	n/a
Orifice Size	n/a	Mounting Type	Panel
Minimum Operating Temperature	-10	Handle Type	Oval
Shape	in-line	Body Material	Carbon Steel
Maximum Operating Pressure	103	Configuration	In-Line
Actuation Type	Manual	Maximum Flow Rate	n/a
Division	Fluid System Connectors Division	Maximum Operating Temperature	210
Connection Type	NPT, Straight Thread, SAE J1926-1	Seat Material	PTFE
Operation Type	n/a
