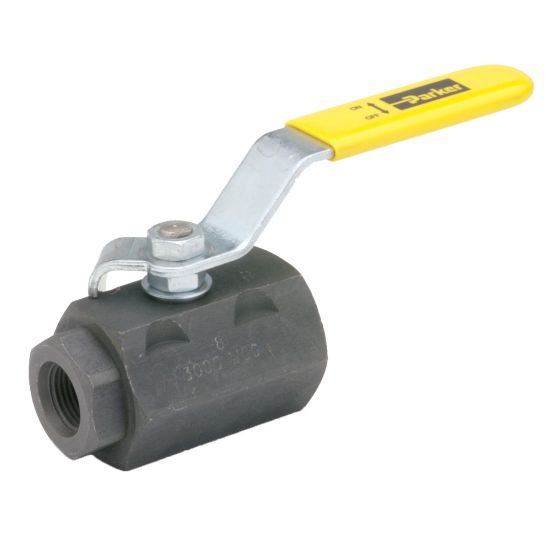

V506CS-4 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 238 days
Partner Available:	48 in stock

SKU V506CS-4

$149.09/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	1/8-27
Connection 2 Thread Size (inch)	7/16-20	Maximum Working Pressure (psi)	3000
Locking Mechanism	Non-Locking	Shape	In Line
Handle	Steel Lever	Style	Straight Thread Ends
Connection 1 Thread Style	SAE Straight Thread	Connection 2 Thread Style	SAE Straight Thread
Seal Material	PTFE	Maximum Operating Temperature	425
Connection Type	NPT, Straight Thread, SAE J1926-1	Division	Fluid System Connectors Division
Maximum Flow Rate	n/a	Seat Material	PTFE
Function	Ball Valve	Connection Size	1/4
Product Type	Ball Valve	Orifice Size	n/a
Minimum Operating Temperature	-20	Ball Material	Steel
Specifications Met	n/a	Mounting Type	Panel
Operation Type	n/a	Shape	in-line
Maximum Operating Pressure	206	Configuration	In-Line
Handle Type	Lever	Actuation Type	Manual
Body Material	Carbon Steel
