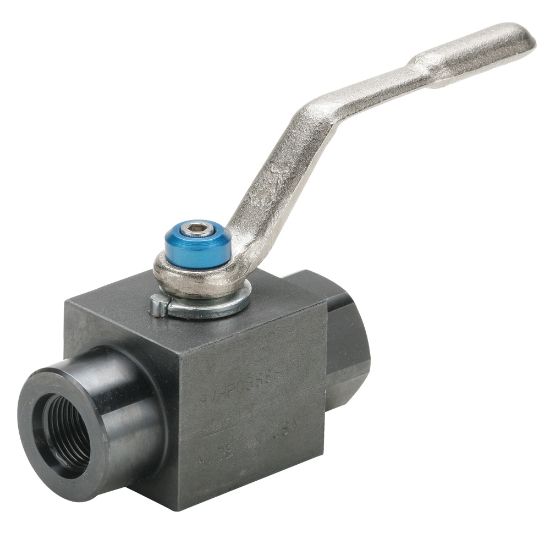

V506HP-32 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU V506HP-32

$709.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	6000
Locking Mechanism	Non-Locking	Shape	In Line
Handle	Steel Lever	Style	Straight Thread Ends
Connection 1 Thread Style	SAE J1926-1	Connection 2 Thread Style	SAE J1926-1
Connection 1 Thread Size (inch)	2 1/2-12 UNF	Connection 2 Thread Size (inch)	2 1/2-12 UNF
Maximum Operating Temperature	210	Division	Fluid System Connectors Division
Maximum Flow Rate	n/a	Seat Material	Delrin Molybdenum Disulphide
Connection Type	NPT, Straight Thread, SAE J1926-1	Operation Type	n/a
Product Type	Ball Valve	Function	Ball Valve
Connection Size	2	Seal Material	PTFE
Mounting Type	Panel	Orifice Size	n/a
Ball Material	Steel	Specifications Met	n/a
Minimum Operating Temperature	-10	Handle Type	Lever
Shape	in-line	Body Material	Carbon Steel
Maximum Operating Pressure	413	Actuation Type	Manual
Configuration	In-Line
