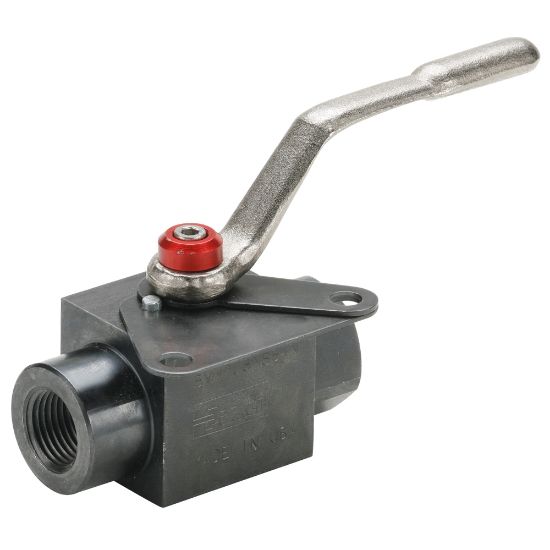

VP500HP-8 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU VP500HP-8

$251.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Steel Lever
Shape	In Line	Connection 2 Thread Size (inch)	1/2
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Maximum Working Pressure (psi)	6000
Locking Mechanism	Padlock	Connection 1 Thread Size (inch)	1/2
Specifications Met	n/a	Ball Material	Steel
Mounting Type	Panel	Minimum Operating Temperature	-10
Maximum Operating Pressure	413	Handle Type	Lever
Shape	in-line	Body Material	Carbon Steel
Configuration	In-Line	Orifice Size	n/a
Actuation Type	Manual	Maximum Flow Rate	n/a
Connection Type	NPT, Straight Thread, SAE J1926-1	Division	Fluid System Connectors Division
Maximum Operating Temperature	210	Seat Material	Delrin Molybdenum Disulphide
Operation Type	n/a	Function	Ball Valve
Connection Size	1/2	Product Type	Ball Valve
Seal Material	PTFE
