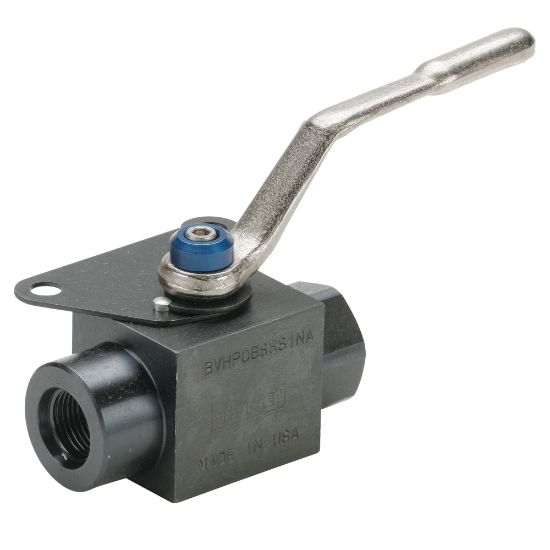

VP506HP-20 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	1 Limited Stock

SKU VP506HP-20

$707.93/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Style	SAE J1926-1
Locking Mechanism	Padlock	Connection 1 Thread Style	SAE J1926-1
Maximum Working Pressure (psi)	6000	Shape	In Line
Connection 1 Thread Size (inch)	1 5/8-12 UNF	Handle	Steel Lever
Style	Straight Thread Ends	Connection 2 Thread Size (inch)	1 5/8-12 UNF
Connection Size	1 1/4	Seal Material	PTFE
Maximum Operating Temperature	210	Division	Fluid System Connectors Division
Maximum Flow Rate	n/a	Seat Material	Delrin Molybdenum Disulphide
Minimum Operating Temperature	-10	Product Type	Ball Valve
Function	Ball Valve	Actuation Type	Manual
Configuration	In-Line	Mounting Type	Panel
Orifice Size	n/a	Ball Material	Steel
Specifications Met	n/a	Connection Type	NPT, Straight Thread, SAE J1926-1
Operation Type	n/a	Body Material	Carbon Steel
Shape	in-line	Maximum Operating Pressure	413
Handle Type	Lever
