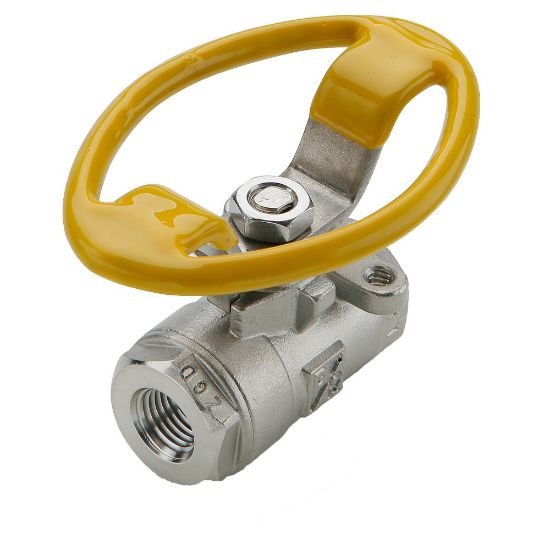

V502SS-4-21 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU V502SS-4-21

$135.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Locking Mechanism	Non-Locking	Connection 1 Thread Size (inch)	1/4
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Stainless Steel Oval	Minimum Operating Temperature	0
Function	2-way	Connection Size	1/4
Product Type	Ball Valve	Orifice Size	.38
Configuration	Female NPT	Actuation Type	Manual
Ball Material	PTFE	Specifications Met	NACE MR-01-75
Mounting Type	Panel	Connection Type	NPT
Operation Type	n/a	Maximum Operating Pressure	2000
Vacuum Pressure Rating	28	Handle Type	Oval
Shape	Panel Mount	Body Material	CF-8M Stainless Steel
Seal Material	PTFE	Division	Fluid System Connectors Division
Maximum Flow Rate	4	Maximum Operating Temperature	400
Seat Material	PTFE
