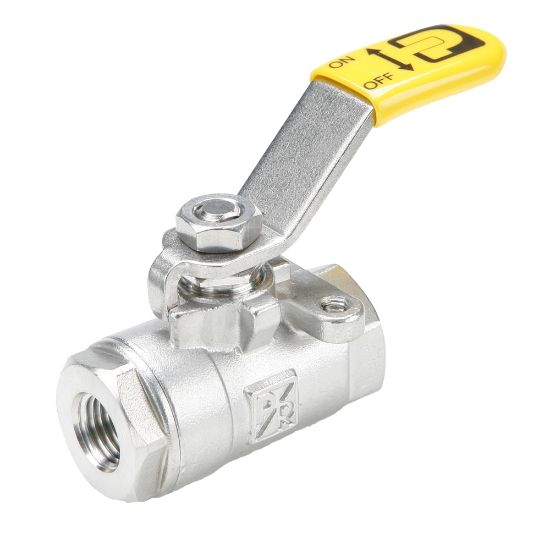

V502SS-6-20 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU V502SS-6-20

$119.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	3/8
Connection 1 Thread Size (inch)	3/8	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Short Stainless Steel	Maximum Operating Temperature	400
Maximum Flow Rate	6	Seal Material	PTFE
Seat Material	PTFE	Division	Fluid System Connectors Division
Connection Type	NPT	Connection Size	3/8
Function	2-way	Product Type	Ball Valve
Orifice Size	.38	Ball Material	PTFE
Minimum Operating Temperature	0	Mounting Type	Panel
Specifications Met	NACE MR-01-75	Shape	Panel Mount
Operation Type	n/a	Vacuum Pressure Rating	28
Actuation Type	Manual	Body Material	CF-8M Stainless Steel
Handle Type	Short	Maximum Operating Pressure	2000
Configuration	Female NPT
