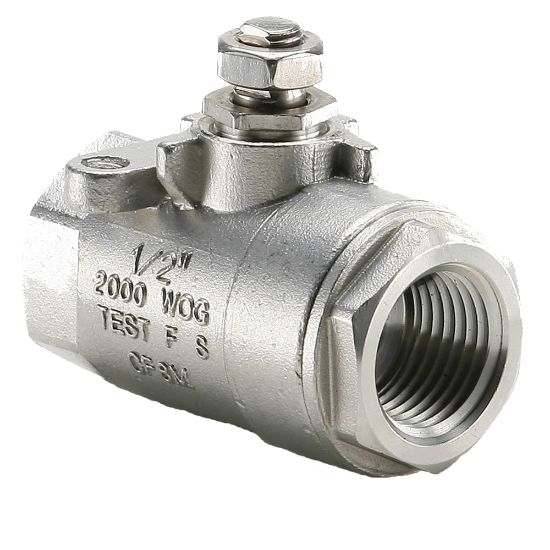

V502SS-6-SUB - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU V502SS-6-SUB

$98.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	3/8
Connection 1 Thread Size (inch)	3/8	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	na	Connection Size	3/8
Product Type	Ball Valve Sub Assembly	Function	2-way
Configuration	Female NPT	Orifice Size	.38
Minimum Operating Temperature	0	Specifications Met	NACE MR-01-75
Ball Material	PTFE	Mounting Type	Panel
Shape	Panel Mount	Operation Type	n/a
Actuation Type	Manual	Handle Type	n/a
Body Material	CF-8M Stainless Steel	Maximum Operating Pressure	2000
Vacuum Pressure Rating	28	Maximum Operating Temperature	400
Seal Material	PTFE	Seat Material	PTFE
Maximum Flow Rate	6	Connection Type	NPT
Division	Fluid System Connectors Division
