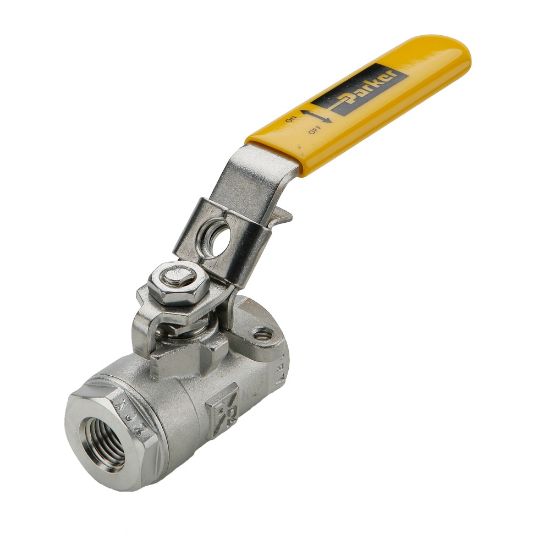

VP502SS-4 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	3 in stock

SKU VP502SS-4

$142.91/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Stainless Steel Lever
Connection 2 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Connection 1 Thread Size (inch)	1/4
Shape	Panel mount	Style	Female Pipe Ends
Locking Mechanism	Padlock	Specifications Met	NACE MR-01-75
Orifice Size	.38	Minimum Operating Temperature	0
Ball Material	PTFE	Mounting Type	Panel
Shape	Panel Mount	Operation Type	n/a
Body Material	CF-8M Stainless Steel	Vacuum Pressure Rating	28
Actuation Type	Manual	Handle Type	Locking Lever
Maximum Operating Pressure	2000	Configuration	Female NPT
Maximum Operating Temperature	400	Maximum Flow Rate	4
Seal Material	PTFE	Seat Material	PTFE
Connection Type	NPT	Division	Fluid System Connectors Division
Connection Size	1/4	Product Type	Ball Valve
Function	2-way
