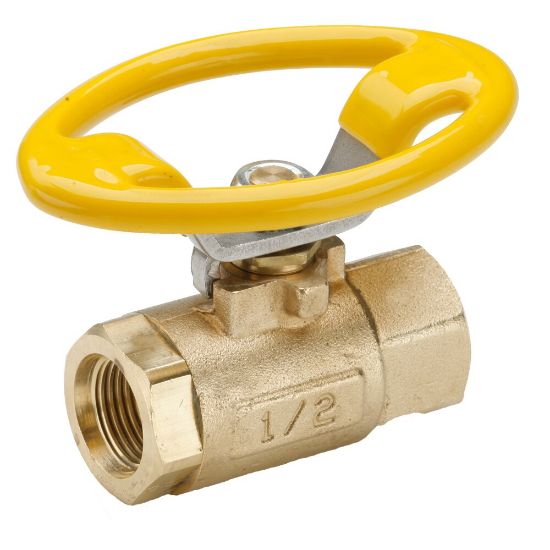

V500P-12-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	8 in stock

SKU V500P-12-21

$106.29/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Steel Oval
Maximum Working Pressure (psi)	600	Connection 2 Thread Style	Female Pipe
Connection 2 Solder O.D. (inch)	na	Style	Female to Female
Shape	In Line	Connection 1 Thread Size (inch)	3/4
Vented	No	Connection 1 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection 2 Thread Size (inch)	3/4	Product Type	Brass Series 500 Ball Valve
Connection Size	3/4	Function	2-Way, Normally Closed, Normally Open
Maximum Operating Temperature	350	Seal Material	PTFE
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	0	Body Material	Brass
Actuation Type	Manual	Handle Type	Oval
Maximum Operating Pressure	41	Orifice Size	.69
Configuration	Female-Female PTF Ports	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Maximum Flow Rate	25
Seat Material	PTFE	Shape	In-Line
Operation Type	n/a
