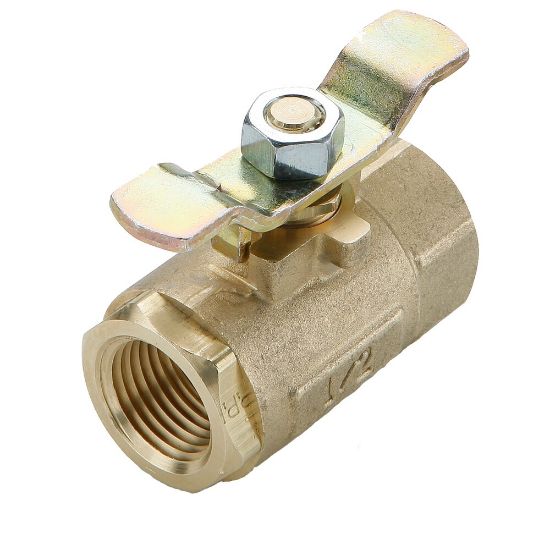

V500P-8-04 - Industrial Brass Ball Valves

Name: V500P-8-04 - Industrial Brass Ball Valves
SKU: V500P-8-04
Price: 32.14 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

6 in stock

Kansas City, KS

Partner Available:

18 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V500P-8-04

$32.14/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Connection 1 Thread Size (inch)	1/2
Handle	Tee Handle	Style	Female to Female
Connection 2 Solder O.D. (inch)	na	Shape	In Line
Vented	No	Connection 1 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection 2 Thread Style	Female Pipe	Function	2-Way, Normally Closed, Normally Open
Product Type	Brass Series 500 Ball Valve	Seal Material	PTFE
Connection Size	1/2	Ball Material	Chrome Plated Brass
Orifice Size	.50	Mounting Type	Panel, In-Line
Minimum Operating Temperature	0	Maximum Operating Pressure	41
Handle Type	Tee	Shape	In-Line
Body Material	Brass	Configuration	Female-Female PTF Ports
Actuation Type	Manual	Maximum Flow Rate	12
Division	Fluid System Connectors Division	Maximum Operating Temperature	350
Seat Material	PTFE	Connection Type	NPT, Straight Thread Solder
Operation Type	n/a
