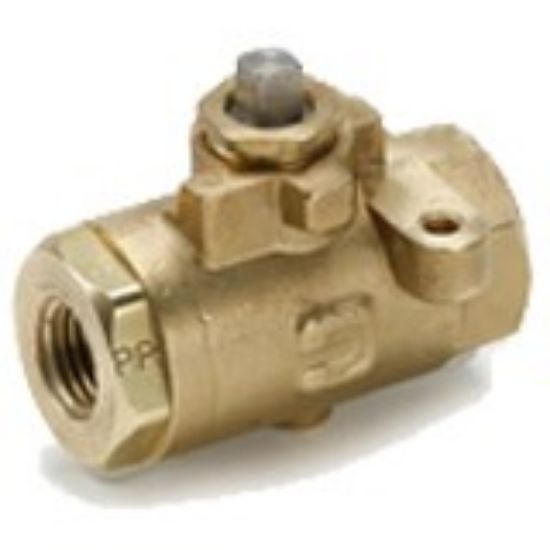

V502P-12-SUB - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V502P-12-SUB

$96.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	3/4
Connection 2 Thread Size (inch)	3/4	Maximum Working Pressure (psi)	150
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Shape	Panel Mount Sub Assembly
Handle	na	Actuation Type	Manual
Configuration	Female-Female PTF Ports	Mounting Type	Panel, In-Line
Orifice Size	.68	Ball Material	Chrome Plated Brass
Connection Type	NPT, Straight Thread Solder	Operation Type	n/a
Body Material	Brass	Shape	In-Line
Handle Type	n/a	Maximum Operating Pressure	10
Connection Size	3/4	Seal Material	PTFE
Maximum Operating Temperature	350	Maximum Flow Rate	n/a
Seat Material	PTFE	Division	Fluid System Connectors Division
Minimum Operating Temperature	0	Product Type	Actuator Sub-Assembly
Function	2-Way, Normally Closed, Normally Open
