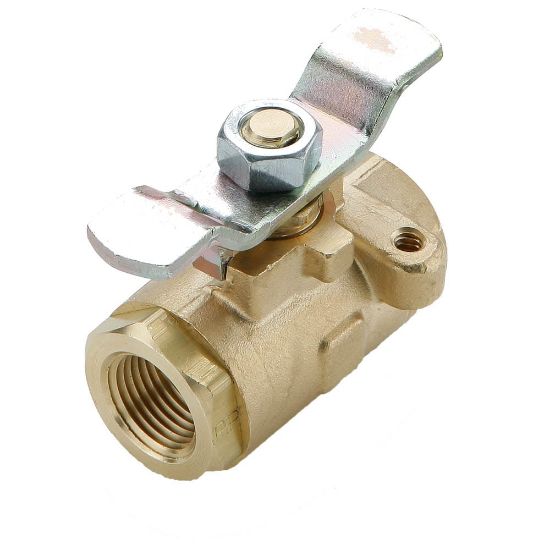

V502P-16-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V502P-16-04

$88.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Connection 1 Thread Size (inch)	1
Connection 2 Thread Size (inch)	1	Handle	Steel Tee
Shape	Panel mount	Ball Material	Chrome Plated Brass
Mounting Type	Panel, In-Line	Minimum Operating Temperature	0
Handle Type	Tee	Body Material	Brass
Maximum Operating Pressure	41	Actuation Type	Manual
Orifice Size	.88	Configuration	Female-Female PTF Ports
Seat Material	PTFE	Maximum Flow Rate	35
Connection Type	NPT, Straight Thread Solder	Division	Fluid System Connectors Division
Shape	In-Line	Operation Type	n/a
Connection Size	1	Product Type	Ball Valve
Function	2-Way, Normally Closed, Normally Open	Maximum Operating Temperature	350
Seal Material	PTFE
