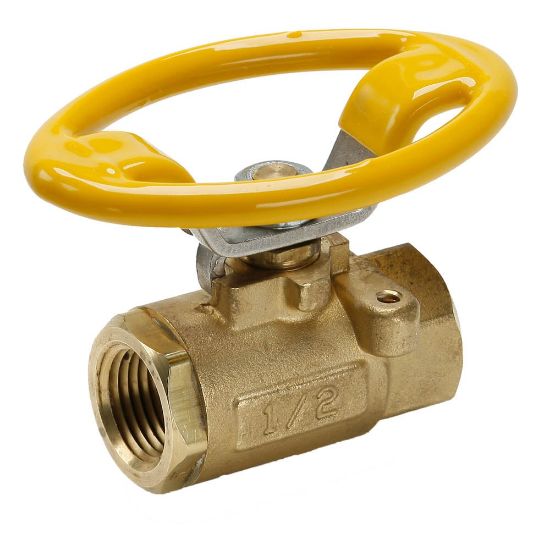

V502P-8-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	7 in stock

SKU V502P-8-21

$98.98/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Handle	Steel Oval
Shape	Panel mount	Actuation Type	Manual
Maximum Operating Pressure	41	Configuration	Female-Female PTF Ports
Orifice Size	.50	Ball Material	Chrome Plated Brass
Mounting Type	Panel, In-Line	Operation Type	n/a
Seat Material	PTFE	Connection Type	NPT, Straight Thread Solder
Shape	In-Line	Body Material	Brass
Handle Type	Oval	Connection Size	1/2
Seal Material	PTFE	Maximum Operating Temperature	350
Division	Fluid System Connectors Division	Maximum Flow Rate	12
Minimum Operating Temperature	0	Function	2-Way, Normally Closed, Normally Open
Product Type	Brass Series 502 Ball Valve
