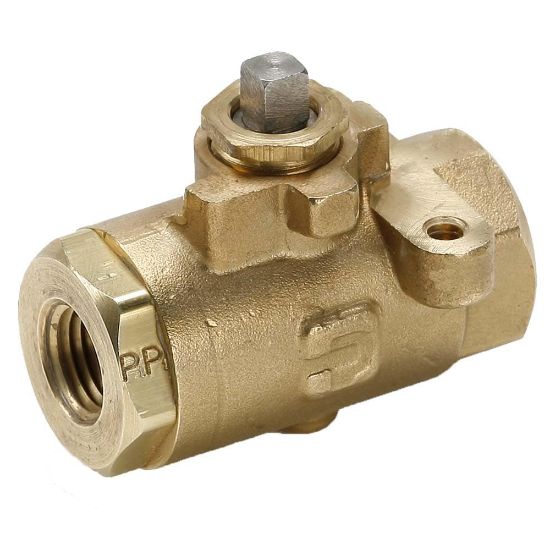

V502P-8-SUB - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V502P-8-SUB

$88.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	150
Connection 2 Thread Size (inch)	1/2	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Shape	Panel Mount Sub Assembly
Handle	na	Ball Material	Chrome Plated Brass
Mounting Type	Panel, In-Line	Minimum Operating Temperature	0
Maximum Operating Pressure	10	Body Material	Brass
Handle Type	n/a	Shape	In-Line
Orifice Size	.50	Configuration	Female-Female PTF Ports
Actuation Type	Manual	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Maximum Flow Rate	n/a
Seat Material	PTFE	Operation Type	n/a
Function	2-Way, Normally Closed, Normally Open	Connection Size	1/2
Product Type	Actuator Sub-Assembly	Seal Material	PTFE
Maximum Operating Temperature	350
