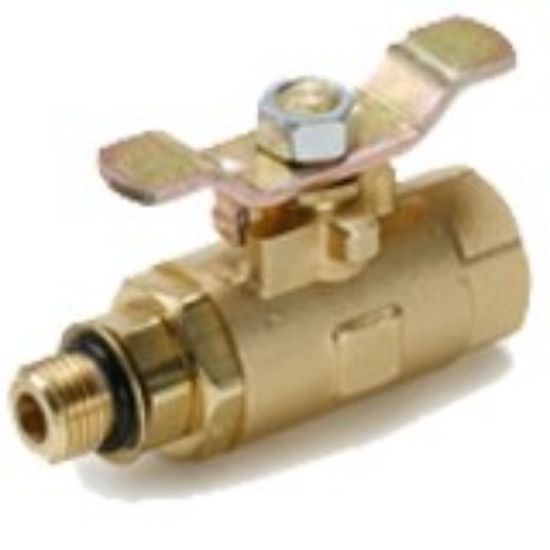

V510P-10-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V510P-10-04

$128.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	7/8-14
Connection 2 Thread Size (inch)	7/8-14	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread	Seat Material	PTFE
Division	Fluid System Connectors Division	Maximum Flow Rate	7.6
Connection Type	NPT, Straight Thread Solder	Shape	In-Line
Operation Type	n/a	Function	2-Way, Normally Closed, Normally Open
Connection Size	5/8	Product Type	Brass Series 510 Ball Valve
Maximum Operating Temperature	350	Seal Material	PTFE
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	0	Body Material	Brass
Handle Type	Tee	Actuation Type	Manual
Maximum Operating Pressure	41	Configuration	Male-Female STO SAE J1926 Ports
Orifice Size	.50
