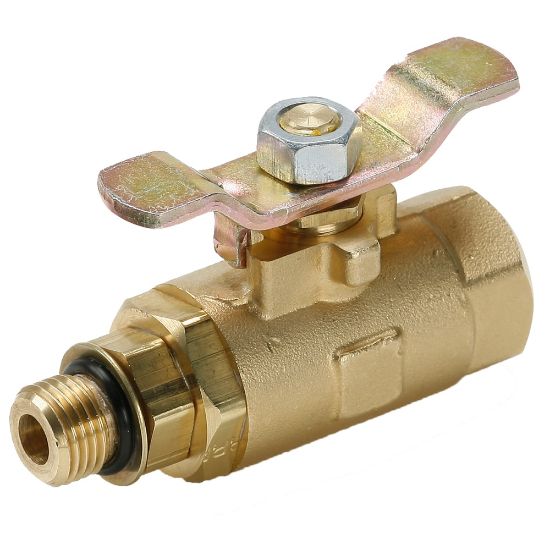

V510P-4-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V510P-4-04

$70.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	7/16-20
Maximum Working Pressure (psi)	600	Connection 1 Thread Size (inch)	7/16-20
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Minimum Operating Temperature	0
Body Material	Brass	Shape	In-Line
Maximum Operating Pressure	41	Handle Type	Tee
Actuation Type	Manual	Orifice Size	.19
Configuration	Male-Female STO SAE J1926 Ports	Maximum Operating Temperature	350
Maximum Flow Rate	.8	Connection Type	NPT, Straight Thread Solder
Seat Material	PTFE	Division	Fluid System Connectors Division
Operation Type	n/a	Product Type	Brass Series 510 Ball Valve
Connection Size	1/4	Function	2-Way, Normally Closed, Normally Open
Seal Material	PTFE
