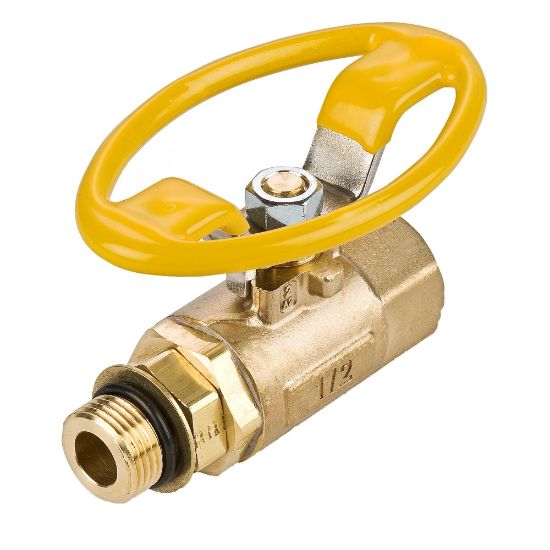

V510P-8-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU V510P-8-21

$75.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	3/4-16
Connection 2 Thread Size (inch)	3/4-16	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Oval
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread	Actuation Type	Manual
Orifice Size	.42	Configuration	Male-Female STO SAE J1926 Ports
Ball Material	Chrome Plated Brass	Mounting Type	Panel, In-Line
Shape	In-Line	Operation Type	n/a
Handle Type	Oval	Body Material	Brass
Maximum Operating Pressure	41	Maximum Operating Temperature	350
Seal Material	PTFE	Seat Material	PTFE
Maximum Flow Rate	5.3	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Minimum Operating Temperature	0
Connection Size	1/2	Product Type	Brass Series 510 Ball Valve
Function	2-Way, Normally Closed, Normally Open
