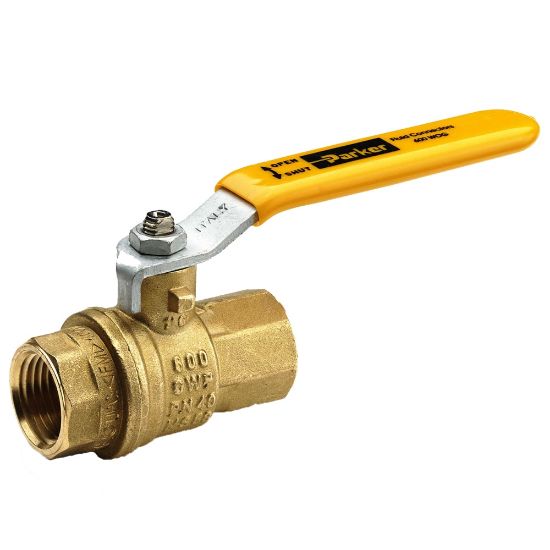

V520P-8 - Industrial Brass Ball Valves

Name: V520P-8 - Industrial Brass Ball Valves
SKU: V520P-8
Price: 20.75 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

47 in stock

Wichita, KS	25
Peoria, IL	6
WICHITA, KS	5
COLUMBIA, MO	5
Kansas City, KS	2
TOPEKA, KS	2
Olivette, MO	2

Partner Available:

526 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V520P-8

$20.75/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Style	Female to Female (Standard Port)	Product Type	Brass Series 520 Ball Valve
Connection Size	1/2	Function	2-Way, Normally Closed, Normally Open
Maximum Operating Temperature	350	Seal Material	PTFE
Maximum Flow Rate	n/a	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Minimum Operating Temperature	-40
Actuation Type	Manual	Configuration	Female-Female NPT Ports
Maximum Operating Pressure	41	Handle Type	Lever
Orifice Size	.60	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Seat Material	PTFE
Body Material	Brass	Shape	In-Line
Operation Type	n/a
