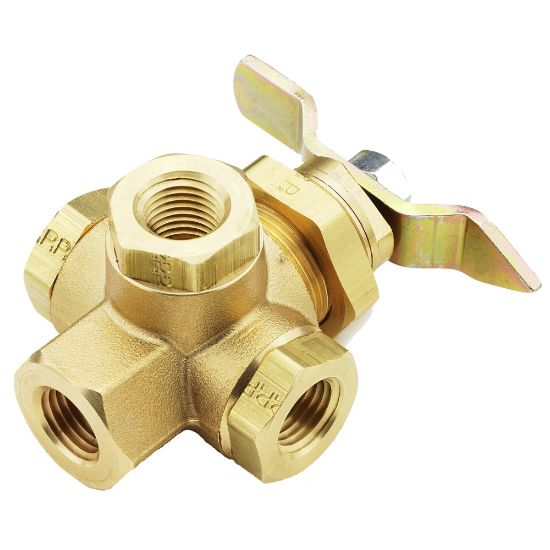

V540P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU V540P-4

$309.53/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Vented	No	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	400	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	4-Way	Operation Type	n/a
Maximum Operating Pressure	27	Body Material	Brass
Shape	4-Way Diversion	Handle Type	Tee
Seal Material	PTFE	Maximum Flow Rate	n/a
Maximum Operating Temperature	350	Seat Material	PTFE
Connection Type	NPT, Straight Thread Solder	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20	Function	2-Way, Normally Closed, Normally Open
Product Type	4 Way Diversion Brass Series 540 Ball Valve	Connection Size	1/4
Actuation Type	Manual	Orifice Size	.25
Configuration	Female-Female-Female-Female Pipe Ends	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass
