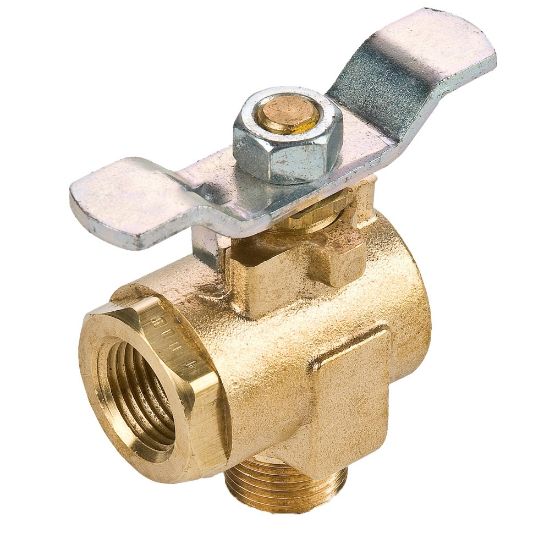

V590P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	19 in stock

SKU V590P-8

$59.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/2	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Style	Female/Male	Connection 1 Solder O.D. (inch)	na
Handle	Steel Tee	Shape	90 Valve
Connection 2 Thread Style	Male Pipe	Operation Type	n/a
Shape	Elbow	Configuration	Male-Female PTF Ports
Maximum Operating Pressure	17 bar	Handle Type	Tee
Body Material	Brass	Actuation Type	Manual
Seal Material	PTFE	Maximum Flow Rate	n/a
Maximum Operating Temperature	176 °C	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Seat Material	PTFE
Product Type	Brass Series 590 Ball Valve	Connection Size	1/2 inch
Function	2-Way, Normally Closed, Normally Open	Orifice Size	.50 inch
Dimensional Weight	0.27594424460431655 lb	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	-45 °C	Mounting Type	Panel, In-Line
