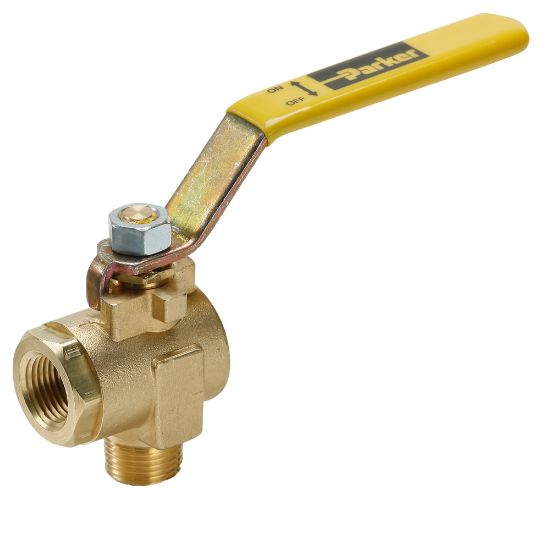

V590P-8-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	10 in stock

SKU V590P-8-04

$58.76/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/2	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Style	Female/Male	Connection 1 Solder O.D. (inch)	na
Handle	Steel Lever	Shape	90 Valve
Connection 2 Thread Style	Male Pipe	Function	2-Way, Normally Closed, Normally Open
Connection Size	1/2	Product Type	Brass Series 590 Ball Valve
Maximum Operating Temperature	350	Seal Material	PTFE
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	-50	Body Material	Brass
Handle Type	Tee	Shape	Elbow
Maximum Operating Pressure	17	Actuation Type	Manual
Configuration	Male-Female PTF Ports	Orifice Size	.50
Seat Material	PTFE	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Maximum Flow Rate	n/a
Operation Type	n/a
