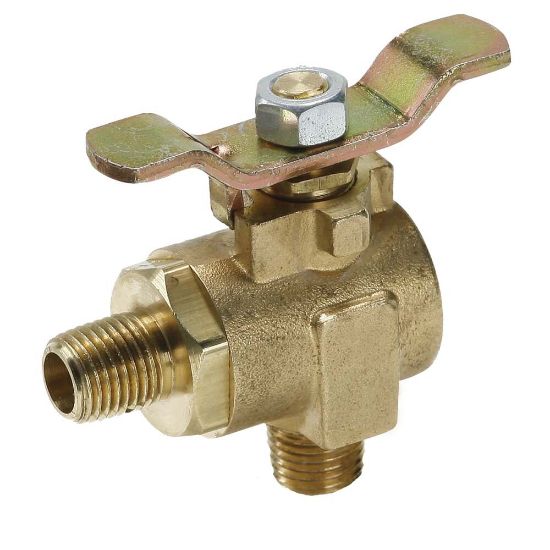

V591P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU V591P-8

$45.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/2	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Shape	90 Valve	Style	Male to Male
Connection 2 Thread Style	Male Pipe	Actuation Type	Manual
Orifice Size	.50	Configuration	Male-Male Pipe Ends
Ball Material	Chrome Plated Brass	Mounting Type	Panel, In-Line
Shape	Elbow	Operation Type	n/a
Handle Type	Tee	Body Material	Brass
Maximum Operating Pressure	17	Maximum Operating Temperature	350
Seal Material	PTFE	Seat Material	PTFE
Maximum Flow Rate	n/a	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Minimum Operating Temperature	-50
Connection Size	1/2	Product Type	Brass Series 591 Ball Valve
Function	2-Way, Normally Closed, Normally Open
