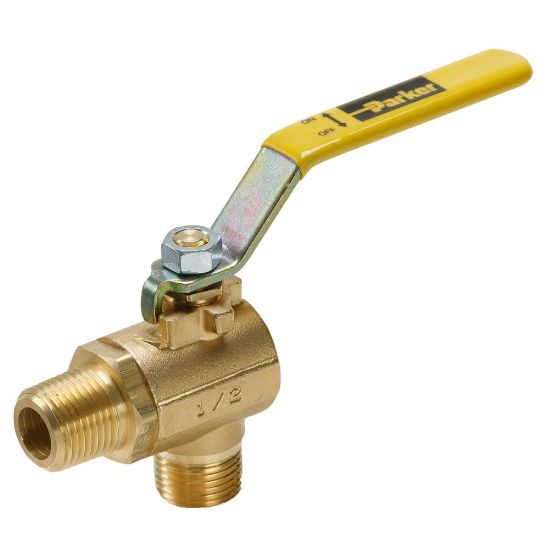

V591P-8-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU V591P-8-04

$48.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/2	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	90 Valve	Style	Male to Male
Connection 2 Thread Style	Male Pipe	Maximum Operating Temperature	350
Division	Fluid System Connectors Division	Maximum Flow Rate	n/a
Connection Type	NPT, Straight Thread Solder	Seat Material	PTFE
Product Type	Brass Series 591 Ball Valve	Connection Size	1/2
Function	2-Way, Normally Closed, Normally Open	Seal Material	PTFE
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Orifice Size	.50	Minimum Operating Temperature	-50
Body Material	Brass	Shape	Elbow
Operation Type	n/a	Actuation Type	Manual
Configuration	Male-Male Pipe Ends	Maximum Operating Pressure	17
Handle Type	Tee
