VP500P-8 - Industrial Brass Ball Valves

Name: VP500P-8 - Industrial Brass Ball Valves
SKU: VP500P-8
Price: 37.35 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

7 in stock

Kansas City, KS	3
TOPEKA, KS	2
Decatur, IL	2

Partner Available:

200 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VP500P-8

$37.35/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe	Maximum Working Pressure (psi)	600
Locking Mechanism	Padlock	Connection 1 Thread Size (inch)	1/2
Connection 2 Thread Style	Female Pipe	Handle	Steel Lever
Style	Female to Female	Connection 2 Solder O.D. (inch)	na
Connection 2 Thread Size (inch)	1/2	Shape	In Line
Vented	No	Actuation Type	Manual
Handle Type	Lever	Body Material	Brass
Maximum Operating Pressure	41	Configuration	Female-Female PTF Ports
Orifice Size	.38	Seat Material	PTFE
Maximum Flow Rate	5.8	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Shape	In-line
Operation Type	n/a	Connection Size	1/2
Product Type	Brass Series 500 Ball Valve	Function	2-Way, Normally Closed, Normally Open
Maximum Operating Temperature	350	Seal Material	PTFE
Minimum Operating Temperature	0	Ball Material	Chrome Plated Brass
Mounting Type	Panel, In-Line

Customers who bought this item also bought

125HBL-12-12 - Brass Hose Barb Fittings

Parker's brass hose barb fittings are an economical choice for general purpose fluid handling and pneumatics, available in both tapered and beaded barb styles.

$10.62/each

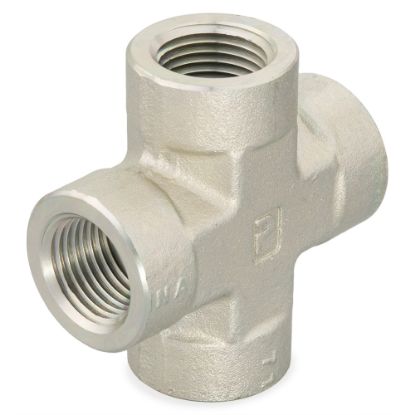

1/2 KMMOO-S - Pipe Fittings and Port Adapters
