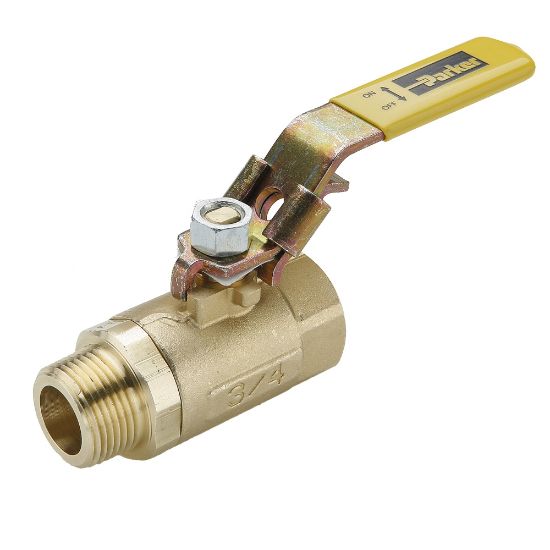

VP501P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	1 Limited Stock

SKU VP501P-4

$64.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Size (inch)	1/4	Connection 1 Thread Size (inch)	1/4
Style	Female/Male	Maximum Working Pressure (psi)	600
Locking Mechanism	Padlock	Handle	Steel Lever
Shape	In Line	Vented	No
Connection 2 Solder O.D. (inch)	na	Body Material	Brass
Handle Type	Lever	Shape	In-line
Maximum Operating Pressure	41	Actuation Type	Manual
Configuration	Male-Female PTF Ports	Seat Material	PTFE
Maximum Operating Temperature	350	Division	Fluid System Connectors Division
Maximum Flow Rate	6.3	Operation Type	n/a
Connection Type	NPT, Straight Thread Solder	Function	2-Way, Normally Closed, Normally Open
Product Type	Brass Series 501 Ball Valve	Connection Size	1/4
Seal Material	PTFE	Mounting Type	Panel, In-Line
Orifice Size	.34	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	0
