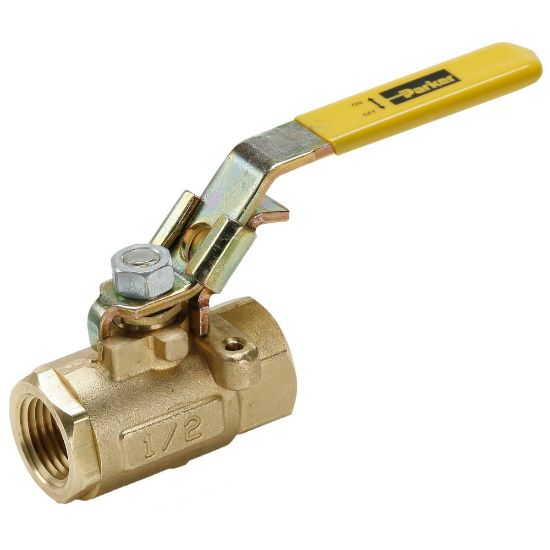

VP502P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU VP502P-4

$58.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Size (inch)	1/4	Handle	Steel Lever
Connection 1 Solder O.D. (inch)	na	Maximum Working Pressure (psi)	600
Locking Mechanism	Padlock	Connection 2 Thread Style	Female Pipe
Shape	Panel mount	Connection 1 Thread Size (inch)	1/4
Style	Female to Female	Vented	No
Connection 2 Solder O.D. (inch)	na	Handle Type	Lever
Actuation Type	Manual	Maximum Operating Pressure	41
Configuration	Female-Female PTF Ports	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Orifice Size	.38
Seat Material	PTFE	Connection Type	NPT, Straight Thread Solder
Shape	In-line	Body Material	Brass
Operation Type	n/a	Connection Size	1/4
Function	2-Way, Normally Closed, Normally Open	Seal Material	PTFE
Maximum Operating Temperature	350	Division	Fluid System Connectors Division
Maximum Flow Rate	4	Minimum Operating Temperature	0
Product Type	Brass Series 502 Ball Valve
