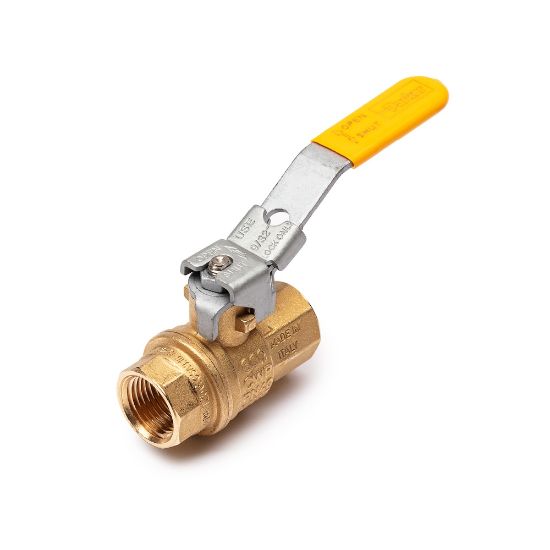

VP520P-48 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU VP520P-48

$766.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Lever	Style	Female to Female (Standard Port)
Connection 1 Thread Size (inch)	3	Connection 2 Thread Size (inch)	3
Locking Mechanism	Padlock	Orifice Size	3.00
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Minimum Operating Temperature	-40	Body Material	Brass
Shape	In-line	Operation Type	n/a
Actuation Type	Manual	Configuration	Female-Female NPT Ports
Maximum Operating Pressure	41	Handle Type	Lever
Maximum Operating Temperature	350	Seal Material	PTFE
Maximum Flow Rate	n/a	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Seat Material	PTFE
Product Type	Brass Series 520 Ball Valve	Connection Size	3
Function	2-Way, Normally Closed, Normally Open
