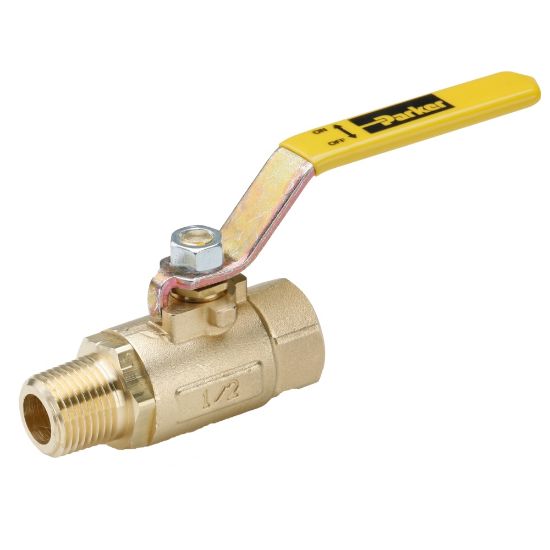

VV501P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU VV501P-4

$46.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Vented	Yes
Locking Mechanism	Non-Locking	Connection 1 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	250	Connection 1 Thread Size (inch)	1/4
Connection 1 Thread Style	Male Pipe	Style	Female/Male
Connection 2 Thread Style	Female Pipe	Shape	In Line
Connection 2 Solder O.D. (inch)	na	Connection 2 Thread Size (inch)	1/4
Handle	Steel Lever	Operation Type	n/a
Maximum Operating Pressure	17	Handle Type	Lever
Body Material	Brass	Shape	In-line
Seal Material	PTFE	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Maximum Flow Rate	6.3
Seat Material	PTFE	Maximum Operating Temperature	350
Minimum Operating Temperature	0	Product Type	Brass Series 501 Ball Valve
Connection Size	1/4	Function	2-Way, Normally Closed, Normally Open
Actuation Type	Manual	Orifice Size	.34
Configuration	Male-Female Pipe Ends	Ball Material	Chrome Plated Brass
Mounting Type	Panel, In-Line
