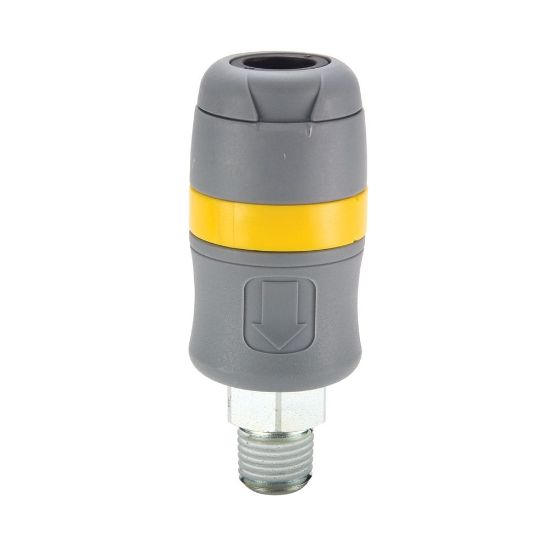

PBH-371-6MP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	1 Limited Stock

SKU PBH-371-6MP

$95.39/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	3/8"-18
Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Body Size	3/8"
Connection Type	Male, NPTF	Thread Style	Male
Lock Type	Polyacetate Locking Fingers	Media	Compressed Air
Plating Type	Galvanized Steel Port Ends	Coupling Half	Coupler
Valve Type	Tubular	Division	Quick Coupling Division
Maximum Operating Temperature	160 °F	Seal Material	Nitrile
Body Material	Polyamide	Maximum Operating Pressure	300 psi
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Minimum Operating Temperature	0 °F
Application	Air	Dimensional Weight	0.14388489208633093 lb
Sleeve Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
