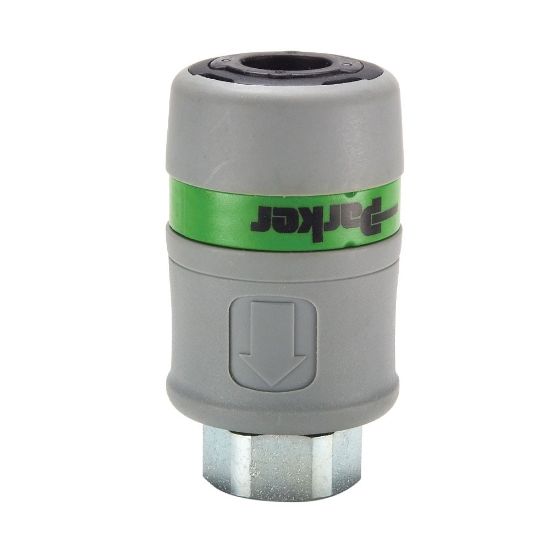

PER-251-6FP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU PER-251-6FP

$40.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	3/8"-18
Thread Style	Female	Body Size	1/4"
Connection Type	Female, NPTF	Interface Option	Connects with RF style nipples
Plating Type	Galvanized Steel Port Ends	Minimum Operating Temperature	0 °F
Specifications Met	Connects with RF style nipples	Seal Material	Nitrile
Maximum Operating Temperature	160 °F	Media	Compressed Air
Coupling Half	Coupler	Lock Type	Polyacetate Locking Fingers
Valve Type	Tubular	Division	Quick Coupling Division
Application	Air	Dimensional Weight	0.12464028776978417 lb
Sleeve Type	Push-to-Connect	Maximum Operating Pressure	300 psi
Body Material	Polyamide

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
