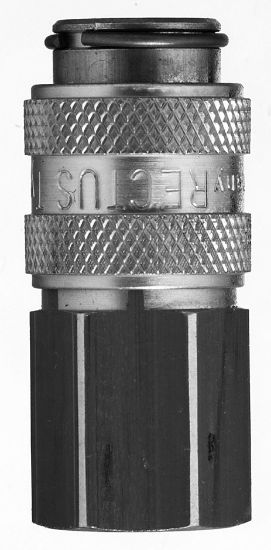

21KAIN10MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 9 days
Partner Available:	23 in stock

SKU 21KAIN10MPN

$19.17/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Thread Size	1/8"-27	Thread Style	Female
Connection Type	NPTF	Hose I.D.	n/a
Body Size	1/8"	Coupling Half	Coupler
Seal Material	NBR	Compatible Fitting	Series 21 Plug
Maximum Operating Temperature	up to 212 °F	Sleeve Material	Brass
Function	Single Shut-Off	Product Type	Quick Couplings Pneumatic
Lock Type	Locking Balls	Coupling Half	Coupler
Connection Size	1/8 inch	Technology	Pneumatics
Media	Low Pressure Fluids	Division	Low Pressure Connectors Europe Division
Shape	Straight	Operation Type	Sleeve
Maximum Flow Rate	1800	Division	Quick Coupling Division
Connection Type	Female	Valve Type	Standard Valve
Interchange Type	European Profile	Sleeve Type	Push to Connect
Product Series	Series 21	Maximum Operating Pressure	up to 507 psi
Body Material	Brass	Region of Origin	Germany
Minimum Operating Temperature	-4 °F	Plating Type	Nickel-plated
Application	Air, High Flow	Specifications Met	n/a
Diameter	5.0	Brand	Rectus
Product Style	Quick-Connect
