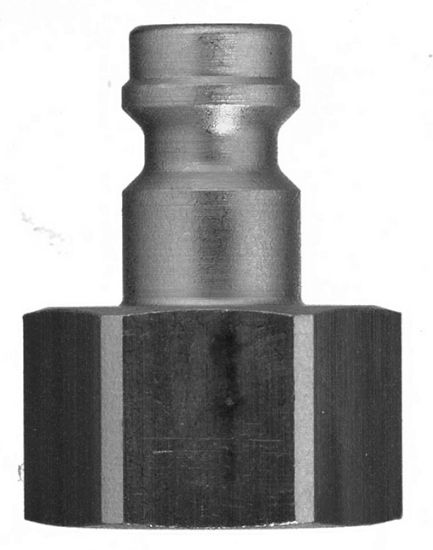

21SFIN13MXN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 78 days
Partner Available:	20 in stock

SKU 21SFIN13MXN

$8.76/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Thread Size	1/4"-18	Thread Style	Female
Hose I.D.	n/a	Body Size	1/8"
Coupling Half	Nipple	Region of Origin	Germany
Maximum Operating Pressure	Depends on the Choosen Associated Coupler	Interchange Type	European Profile
Body Material	Brass	Operation Type	Sleeve
Shape	Straight	Division	Low Pressure Connectors Europe Division
Product Style	Quick-Connect	Minimum Operating Temperature	-40 °C
Brand	Parker	Product Series	Series 21
Diameter	5.0	Application	Air, High Flow
Technology	Pneumatics	Product Type	Quick Couplings Pneumatic
Media	Compressed Air	Function	Straight-Through
Connection Size	1/4 inch	Plating Type	Nickel-plated
Sleeve Material	Brass	Coupling Half	Plug
Division	Quick Coupling Division	Connection Type	Female
Valve Type	Without Valve	Seal Material	Without Seal
Compatible Fitting	Series 21 Coupler	Maximum Operating Temperature	up to 240 °C
