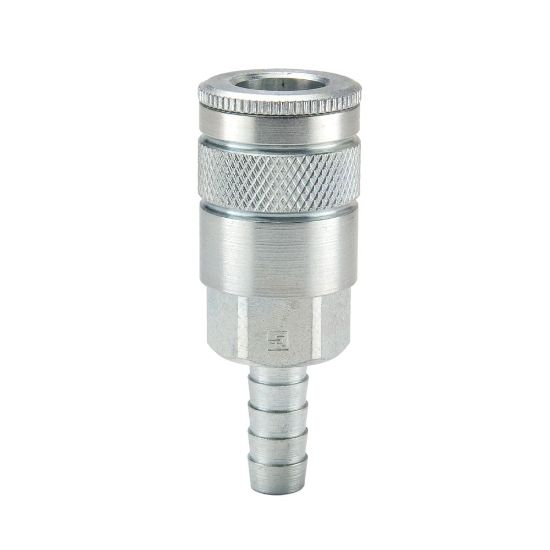

16-7B - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 16-7B

$38.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Body Size (inch)	1/2	Connection Thread Size (inch)	na
Connection Type	Hose barb	Thread Style	na
Connection Hose I.D. (inch)	3/4	Maximum Operating Pressure	300 psi
Body Material	Steel	Sleeve Type	Manual
Division	Quick Coupling Division	Valve Type	Tubular
Lock Type	Locking balls	Coupling Half	Coupler
Media	Low pressure fluids and compressed air	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Application	Air	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
