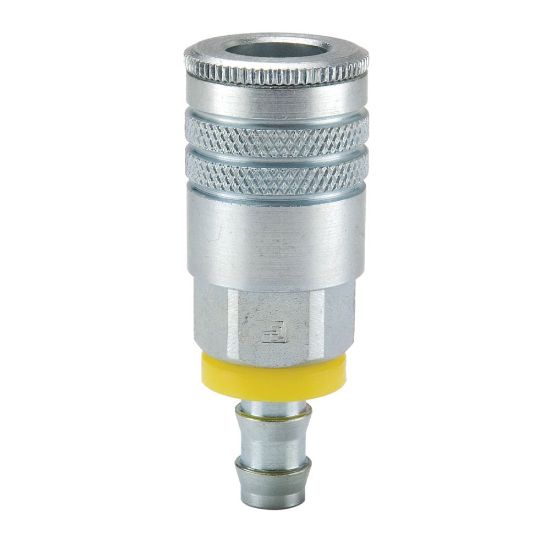

24-5BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: 24-5BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: 24-5BP
Price: 30.56 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

14 in stock

Olivette, MO	5
WICHITA, KS	5
Kansas City, KS	4

Partner Available:

330 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 24-5BP

$30.56/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Body Size (inch)	3/8	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Thread Style	na
Connection Hose I.D. (inch)	3/8	Maximum Operating Pressure	300 psi
Body Material	Steel	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Application	Air
Dimensional Weight	0.07997601918465227 lb	Sleeve Type	Manual
Coupling Half	Coupler	Lock Type	Locking balls
Media	Low pressure fluids and compressed air	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Valve Type	Tubular
Seal Material	Nitrile	Maximum Operating Temperature	250 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
