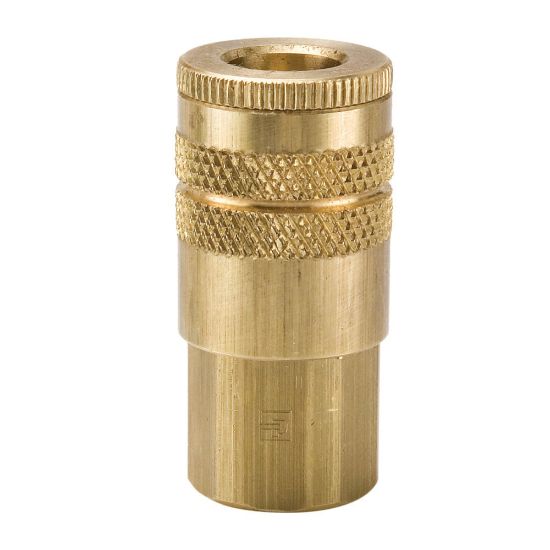

B23 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

445 in stock

TOPEKA, KS	285
Kansas City, KS	44
Olivette, MO	35
WICHITA, KS	17
Wichita, KS	15
Decatur, IL	15
Springfield, MO	8
Peoria, IL	8
COLUMBIA, MO	6
Kansas City, KS	4
Joplin, MO	4
Olivette, MO	4

Partner Available:

2872 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B23

$15.99/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Thread Style	Female	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Division	Quick Coupling Division
Valve Type	Tubular	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	300 psi
Body Material	Brass	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Application	Air	Dimensional Weight	0.026658673061550762 lb
Sleeve Type	Manual	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Coupling Half	Coupler
Minimum Operating Temperature	-40 °F	Plating Type	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
