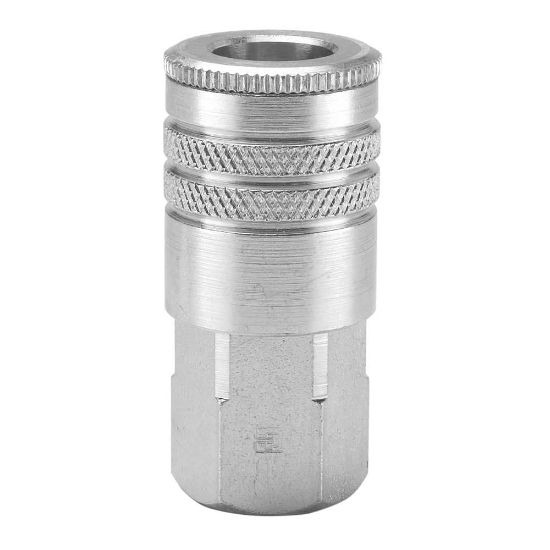

S23 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

2 Limited Stock

TOPEKA, KS

Partner Available:

30 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU S23

$89.55/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless steel (303)
Connection Hose I.D. (inch)	na	Connection Thread Size (inch)	1/4 - 18
Thread Style	Female	Body Size (inch)	1/4
Connection Type	NPTF	Valve Type	Tubular
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Plating Type	na
Coupling Half	Coupler	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Sleeve Type	Manual
Application	Air	Maximum Operating Pressure	300 psi
Dimensional Weight	0.02670863309352518 lb	Body Material	Stainless Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
