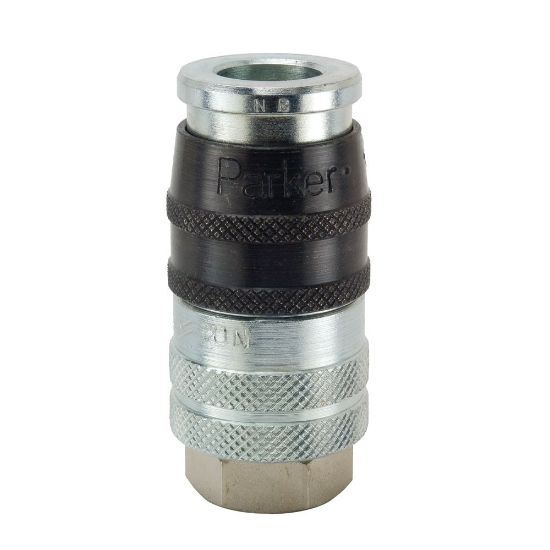

EZ-251-6FP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Name: EZ-251-6FP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
SKU: EZ-251-6FP
Price: 50.56 USD
Availability: LimitedAvailability

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:

3 in stock

Kansas City, KS	2
Olivette, MO	1

Partner Available:

49 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU EZ-251-6FP

$50.56/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	3/8 - 18	Thread Style	Female
Connection Type	NPTF	Connection Hose I.D. (inch)	na
Lock Type	Locking balls	Coupling Half	Coupler
Media	Compressed air	Plating Type	Zinc with clear trivalent chromate on steel body
Valve Type	Tubular	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Special Option	Exhaust - venting
Seal Material	Nitrile	Body Material	Steel
Maximum Operating Pressure	300 psi	Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Minimum Operating Temperature	-40 °F	Application	Air
Dimensional Weight	0.062320143884892085 lb	Sleeve Type	Push to connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
