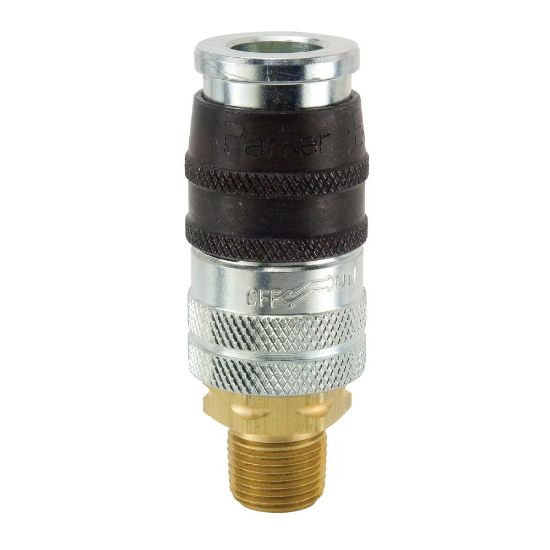

EZ-501-8MP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Name: EZ-501-8MP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
SKU: EZ-501-8MP
Price: 73.40 USD
Availability: InStock

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:

32 in stock

Olivette, MO	25
Peoria, IL	7

Partner Available:

195 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU EZ-501-8MP

$73.40/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Thread Style	Male	Connection Thread Size (inch)	1/2 - 14
Connection Type	NPTF	Connection Hose I.D. (inch)	na
Media	Compressed air	Coupling Half	Coupler
Lock Type	Locking balls	Plating Type	Zinc with clear trivalent chromate on steel body
Minimum Operating Temperature	-40 °F	Valve Type	Tubular
Maximum Operating Temperature	250 °F	Special Option	Exhaust - venting
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Body Material	Steel
Application	Air	Sleeve Type	Push to connect
Specifications Met	ISO 4414 controlled pressure release	Dimensional Weight	0.12464028776978417 lb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
