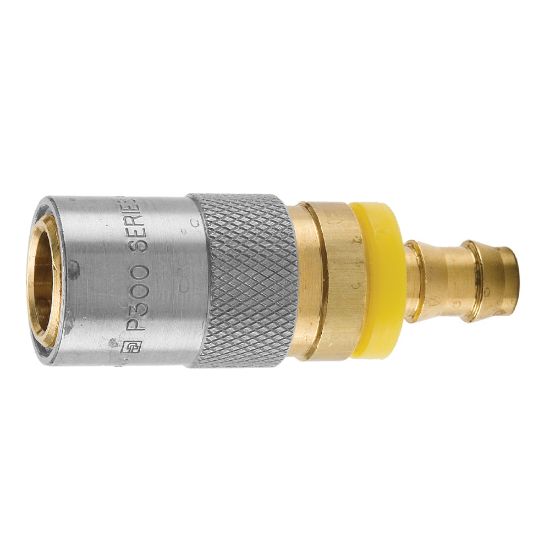

PC204AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC204AV-BP

$25.21/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Body Material	BRASS	Body Size (inch)	1/4
Flow Rate	3	Connection Hose I.D. (inch)	1/4
Valve Style	Poppet	Connection Type	Push-Lok hose barb
Connection Thread Size (inch)	na	Application	Mold Coolant
Dimensional Weight	0.01335431654676259 lb	Maximum Operating Pressure	200 psi
Product Type	Manual Connect	Plating Type	Zinc with clear trivalent chromate on sleeve
Hex Size	0.63 inch	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Seal Material	Silicone - Fluorocarbon
