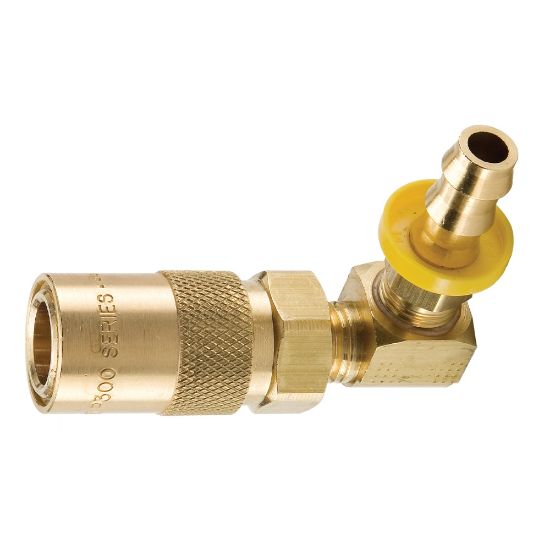

PC214-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	30 in stock

SKU PC214-BP

$26.93/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb, 90 degree	Connection Hose I.D. (inch)	1/4
Flow Rate	3	Body Size (inch)	1/4
Coupling Half	Female Coupler	Valve Style	Unvalved
Body Material	BRASS	Seal Material	Silicone
Product Type	Manual Connect	Plating Type	na
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Maximum Operating Pressure	200 psi	Dimensional Weight	0.02670863309352518 lb
Minimum Operating Temperature	-20 °F	Hex Size	0.63 inch
Application	Hydraulics
