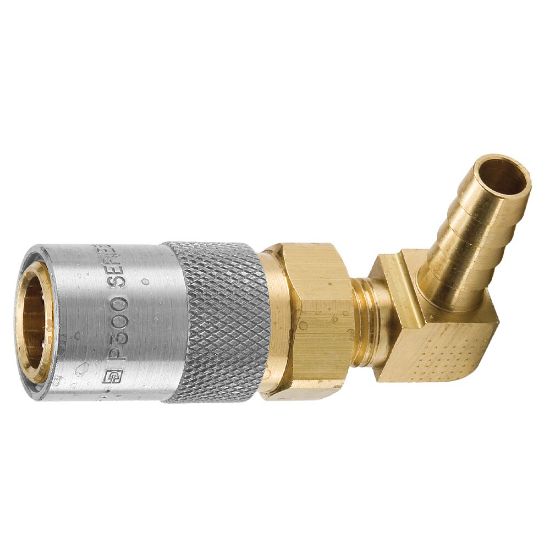

PC316V - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC316V

$35.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Valve Style	Poppet	Connection Hose I.D. (inch)	3/8
Flow Rate	6	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Connection Type	Hose barb, 90 degree
Coupling Half	Female Coupler	Application	Mold Coolant
Maximum Operating Pressure	200 psi	Dimensional Weight	0.05496043165467626 lb
Plating Type	Zinc with clear trivalent chromate on sleeve	Product Type	Manual Connect
Minimum Operating Temperature	-15 °F	Hex Size	0.88 inch
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Seal Material	Silicone - Fluorocarbon
