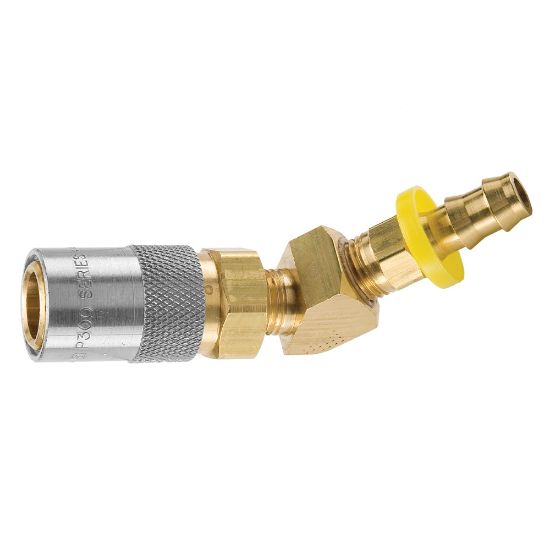

PC326V-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: PC326V-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC326V-BP
Price: 39.56 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:

3 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PC326V-BP

$39.56/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Flow Rate	6	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb, 45 degree	Body Material	BRASS
Coupling Half	Female Coupler	Connection Hose I.D. (inch)	3/8
Valve Style	Poppet	Plating Type	Zinc with clear trivalent chromate on sleeve
Hex Size	0.88 inch	Minimum Operating Temperature	-15 °F
Seal Material	Silicone - Fluorocarbon	Maximum Operating Temperature	400 °F
Product Type	Manual Connect	Division	Quick Coupling Division
Dimensional Weight	0.05496043165467626 lb	Application	Hydraulics
Maximum Operating Pressure	200 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
