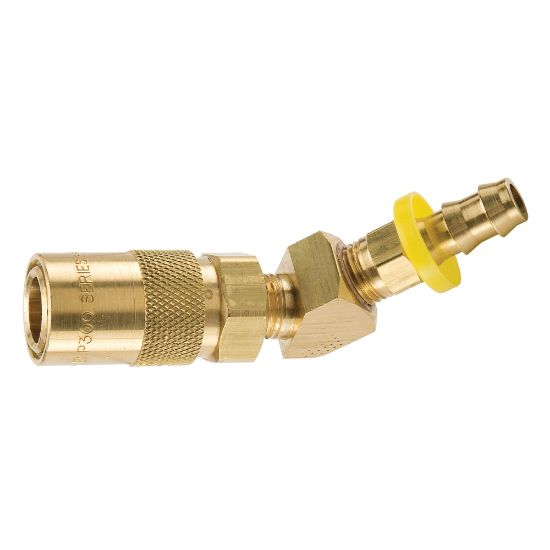

PC328-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: PC328-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC328-BP
Price: 29.58 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:

5 in stock

Olivette, MO

Partner Available:

11 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PC328-BP

$29.58/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Flow Rate	6	Connection Hose I.D. (inch)	1/2
Body Size (inch)	3/8	Connection Type	Push-Lok hose barb, 45 degree
Coupling Half	Female Coupler	Valve Style	Unvalved
Body Material	BRASS	Seal Material	Silicone
Product Type	Manual Connect	Plating Type	na
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Maximum Operating Pressure	200 psi	Dimensional Weight	0.07997601918465227 lb
Minimum Operating Temperature	-20 °F	Hex Size	0.88 inch
Application	Mold Coolant
